TRENCHLESS PIPE BURSTING — REPLACE THE MAIN, KEEP THE YARD

Pipe bursting is the trenchless method we use when the line that has to come out is under something you can't afford to destroy. Instead of opening a 60-foot trench and pulling the old pipe out of the top, we excavate two small pits — one at the house and one near the street or city tap — and pull a heavy pneumatic or hydraulic bursting head through the length of the old pipe from one pit to the other.

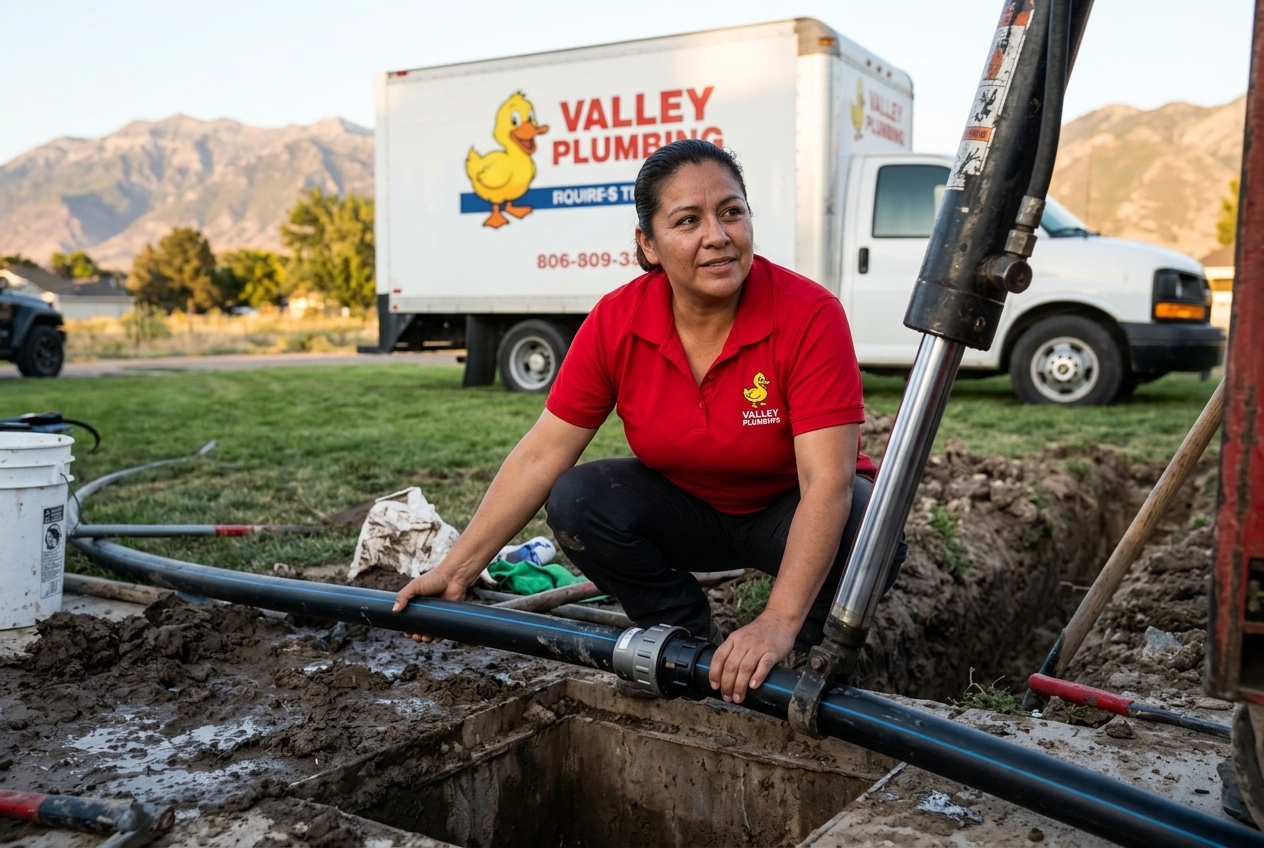

As the head moves, it expands outward with roughly 30 tons of force. The old pipe — clay, cast iron, Orangeburg, ABS, or PVC — shatters into the soil around it. Directly behind the head, trailing on a cable, is a length of fused HDPE (high-density polyethylene) pipe the same diameter or one size up. When the head arrives at the receiving pit, the new pipe is in place, the old pipe is gone, and the 50 feet of yard above is undisturbed.

Where bursting wins over open-trench

Three scenarios make bursting the obvious choice, not just the nice-to-have. First: hardscape. A 30-foot stamped concrete driveway costs $8,000-$14,000 to cut and repour. If your sewer main runs under it, open-trench is a $15,000+ job by the time restoration is done. Bursting runs the new pipe under the driveway through the old line — driveway stays. You just paid $12,500 instead of $16,000.

Second: mature landscape. Utah homes that are 30-50 years old often have sewer lines running directly under a red maple, a 15-year-old lilac hedge, or a retaining wall that cost $18,000 to build. Open-trench means tearing all of it out. Bursting goes under it without disturbing the root ball, the wall footing, or the plant material. Restoration cost: zero.

Third: long runs. Open-trench gets more expensive per foot the longer the run goes — more dig time, more bedding sand, more backfill, more compaction, more sod. Bursting cost curves flatter with length. On a 120-foot sewer main, open-trench might be $13,500 while bursting runs $14,800 — but the bursting job doesn't leave a 120-foot trench scar, so the real comparison is $13,500 + $6,000 in landscape restoration vs. $14,800 total. Easy math.

Where open-trench still wins

Short, accessible runs through soft yard are almost always cheaper open-trench. A 40-foot replacement through an open lawn with no hardscape and no mature trees runs $4,800-$7,500 open-trench and $9,500-$11,500 bursting — bursting isn't worth the premium when the restoration cost is minimal. Collapsed or pancaked pipes are also hard to burst — the bursting head needs intact pipe walls to expand against. Severely bellied lines can be burst but sometimes fill back in at the bellied section, so we camera-verify before committing.

Utah-specific bursting considerations

Wasatch Front soil pushes back. Hard clay with cobble — the same stuff that slows a mini-ex to 15-20 feet per day on a trench — also resists the bursting head. Our rigs are sized for it: we run hydraulic static burst heads rated for 50-ton pull force on cobbled ground, not the lighter pneumatic units that work fine on California sandy loam. Depth matters too: Utah sewer mains are often 5-6 feet deep to clear the 30-inch frost line, so bursting pits have to be hand-shaved below the bursting head's working angle. That's a detail most subcontracted crews get wrong.

The Blue Stakes Utah 811 locate is mandatory — the same legal requirement as open-trench. We file it, wait the 48 business hours, and verify gas, fiber, and water crossings before the pits open. If there's a gas line crossing the bursting path within 18 inches, we either re-route the bursting path or switch to hand-dig at that crossing. Never negotiable.

What we burst and what we don't

We burst 4-inch residential sewer mains (most common Utah residential pipe), 6-inch commercial sewer mains on properties with enough access, and — less commonly — 1-inch and 1.25-inch main water supply lines where the homeowner wants minimum disruption. We don't burst pipe that's already collapsed past a certain threshold, lines with too-tight bends, or lines directly under a load-bearing foundation footing. Every potential bursting job starts with a camera inspection, a written scope, and a flat-rate quote that includes both open-trench and bursting pricing so you can compare the real numbers.

Pull test before commitment: we run a tracer down the line first and verify the bursting cable can seat the full length. Nothing worse than pitting a yard, starting a burst, and finding the pipe offset too badly for the head to progress. Our crews have the tools to hand-dig through and re-access if that happens, but we'd rather know before the pits are open.
